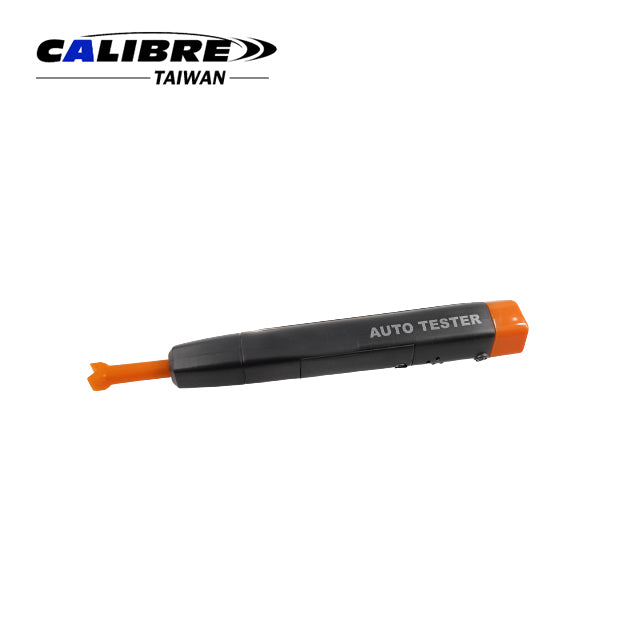

CAW0060 - CALIBRE Cordless Circuit Tester

CAW0060 - CALIBRE Cordless Circuit Tester

Introduction:

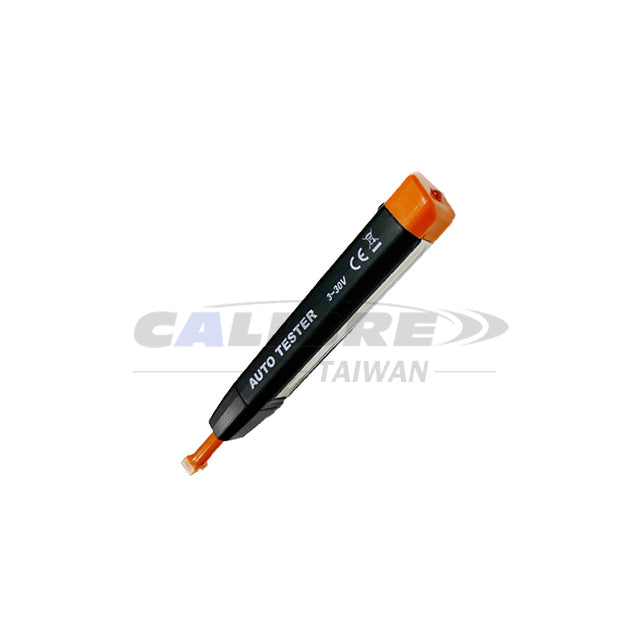

  • Cordless circuit tester for 3-30V DC power measurement.
Feature:

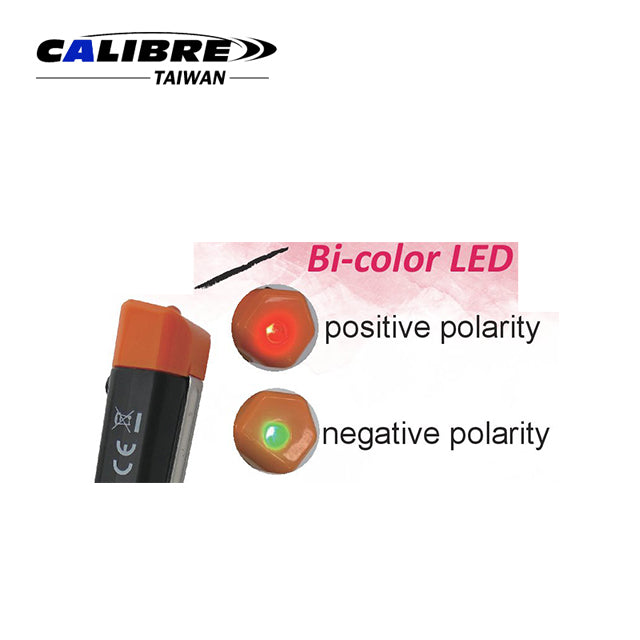

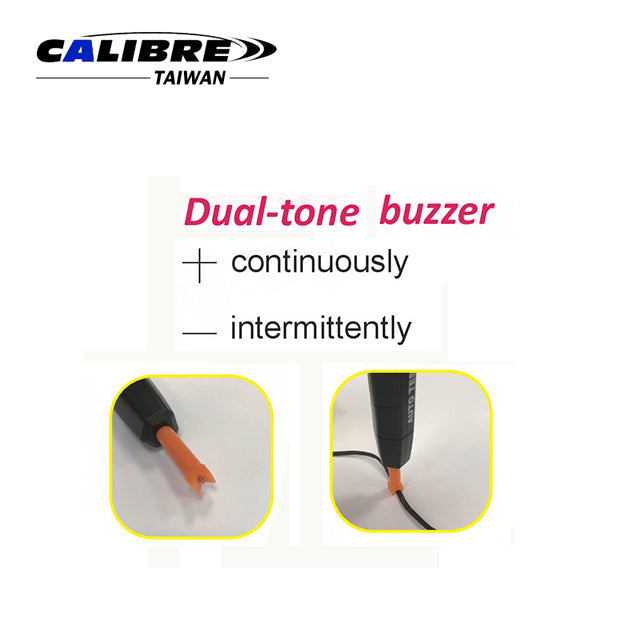

  • Bi-color LED and dual-tone buzzer can distinguish between positive and negative polarity voltage.
  • No ground wire or clip required.

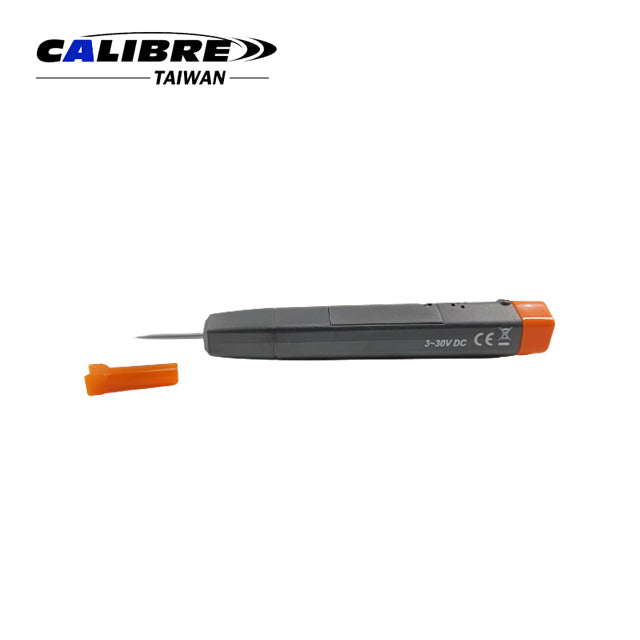

  • V-groove needle accessory makes piercing and carrying safe.

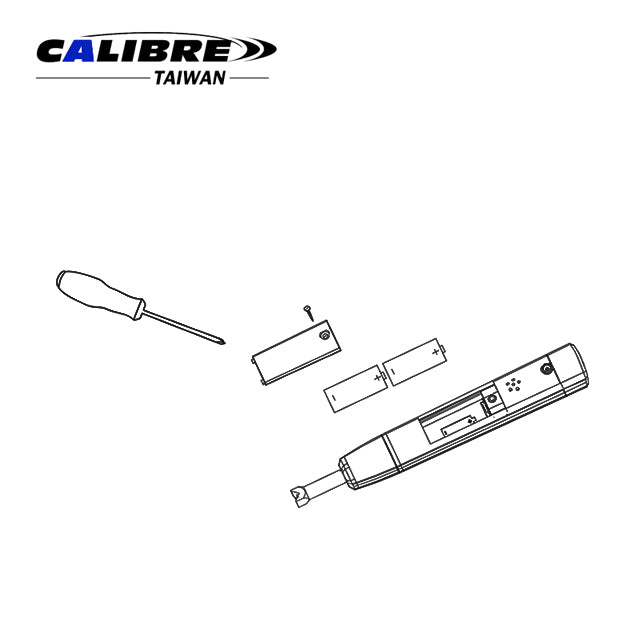

  • Battery: 3V ( 2 x SUM5 1.5V)
  • CE / UKCA
Warning:
  • Only for 3-30V DC Voltage.
  • DO NOT use on AC powered circuits or wall sockets.
  • The product is only for testing tool, Please keep away from the children avoid getting it easily.
Operation:

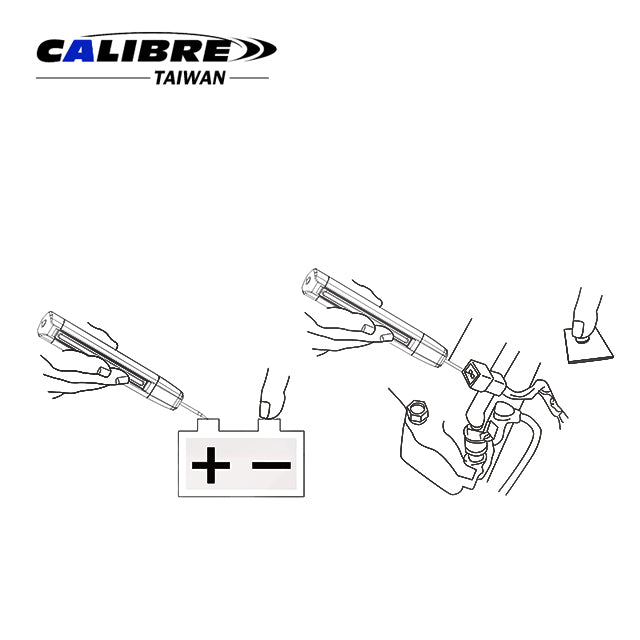

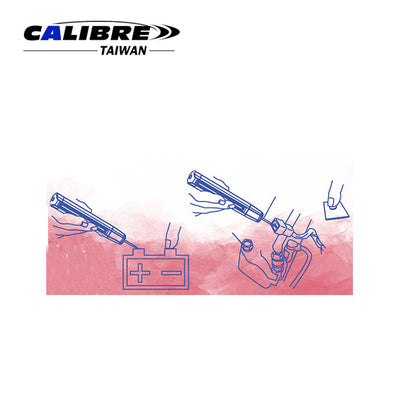

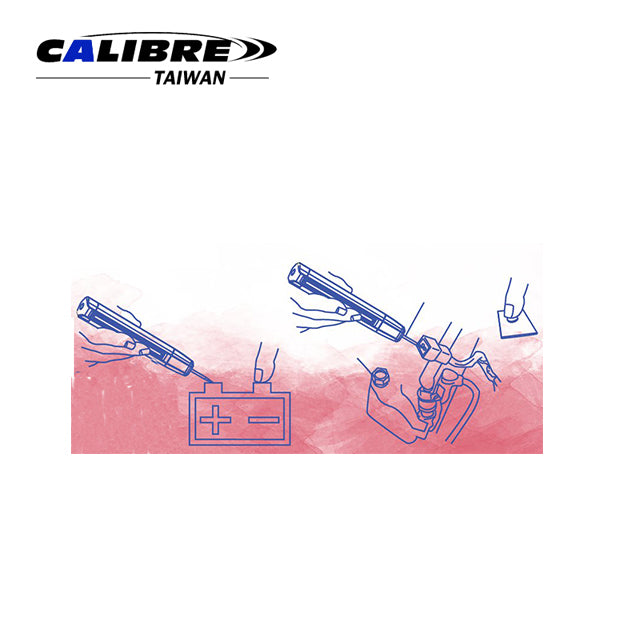

  • Hold one hand with the conducting portion of the tester, and place another hand on bare metal or vehicle battery (3 ~ 30V DC).
  • Contacting the tester probe with the connector or the wire (pierce insulation if necessary).
  • If the tester probe is contacting with positive polarity of the power, and another hand is contacting with bare metal or negative polarity of battery on the vehicle, the “RED” LED will light up and buzzer will tweet continuously.
  • If the tester probe is contacting with negative polarity of the power, and another hand is contacting with positive polarity of the power (3 ~ 30V DC), the “GREEN” LED will light up and buzzer will tweet intermittently.
Caution:
  • Always work in safe and clean area.
  • Always insert the V-Groove protector tip on the tester point before carrying or storing the unit, as this may avoid injuries.
  • Use the V-Groove protector tip when piercing wires to prevent the tester point from side-slipping on the wire and causing injuries or damage.
  • The protector tip may be removed for testing in hard to reach places, inside connectors, sockets, etc.
Packaging:
  • 1pc/Sliding Card
  • 10/100pc/7.2/8.2kgs/1.4'
