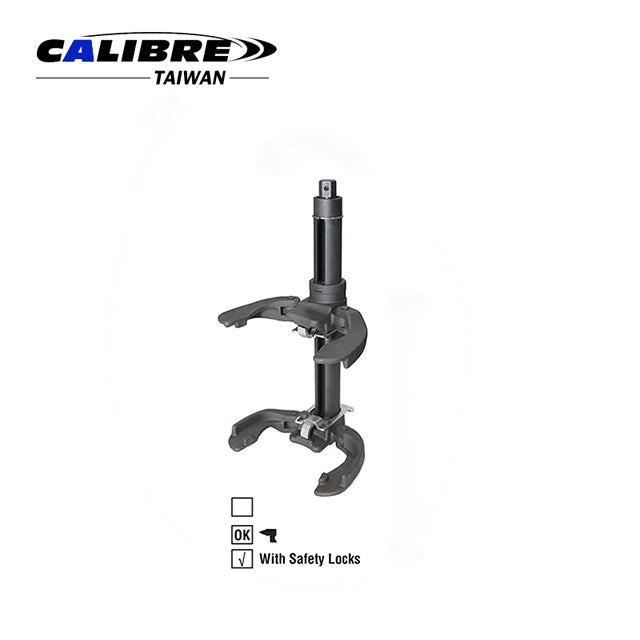

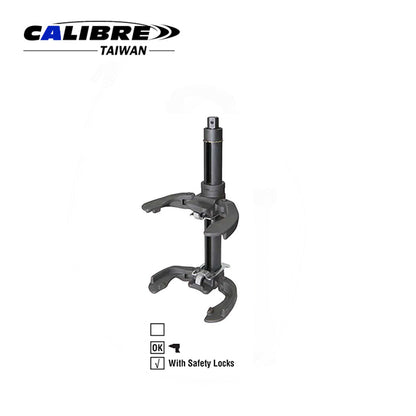

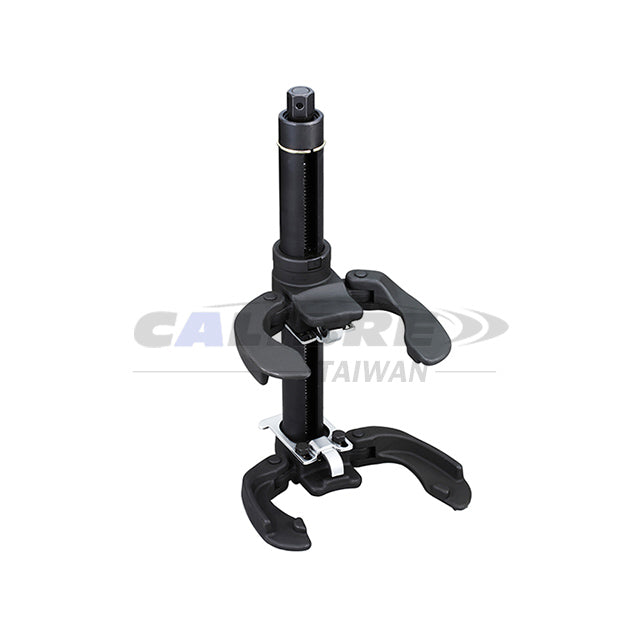

CAK0149 CALIBRE MacPherson Damper Spring Extractor with Adjustable Jaws (with Safety Locks)

CAK0149 CALIBRE MacPherson Damper Spring Extractor with Adjustable Jaws (with Safety Locks)

Spring extractor kit compresses MacPherson shock absorber coil springs. Adjustable jaw width fits various coil spring sizes. Spring extractor has a max load capacity of 2,318 kgf and a break point of 5,800 kgf. The kit includes product liability insurance for safety assurance.
Manual
Feature:
  • Kit for compressing MacPherson shock absorber coil springs

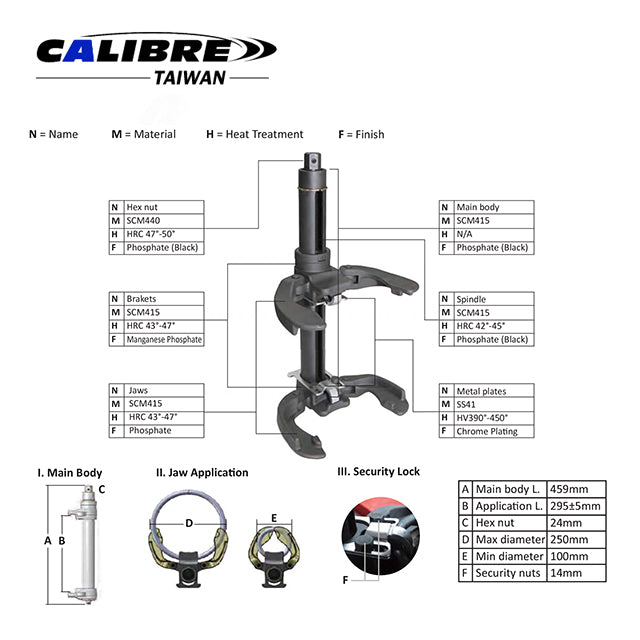

  • Jaws width can be adjustable, fitting different sizes of coil springs
  • Provided with Product Liability Insurance
  • Break point 5,800 kgf (ca. 56,800 N)
  • Max. load 2,318 kgf (ca. 22,700 N)
Instruction:

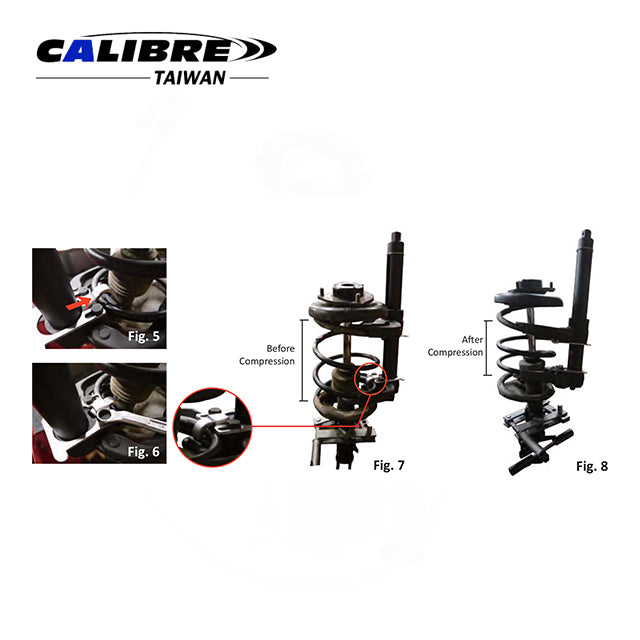

  • Mount the MacPherson shock absorber on a vise, and fasten it securely.
  • Place the upper and lower jaws on the coil spring, and adjust the length of the main body.
  • When the tool is mounted at the adequate position, push the metal plates on security locks on both upper and lower jaws and fasten the nuts.
  • Make sure every connection point is securely fastened.

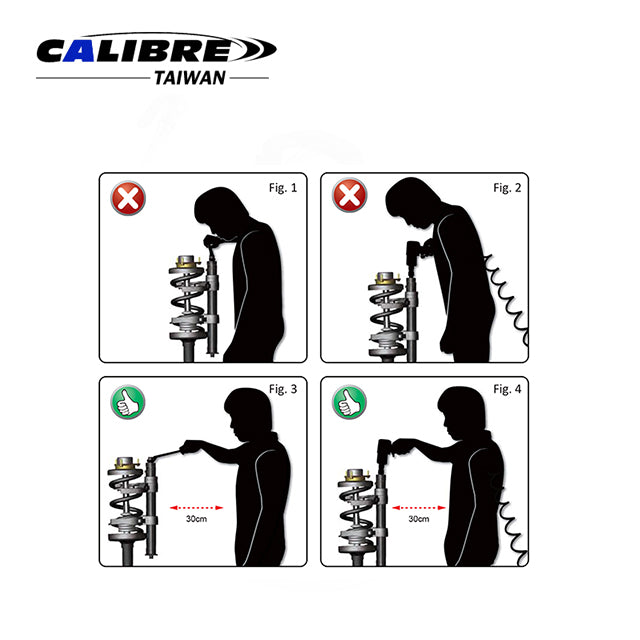

  • Use a spanner or air wrench to compress the coil spring.
Packaging:
  • 1Set/White Box
  • 2Set/19.4/20kgs/1.4’
