Projen Taiwan - Auto Tools, Hand Tools manufacturer

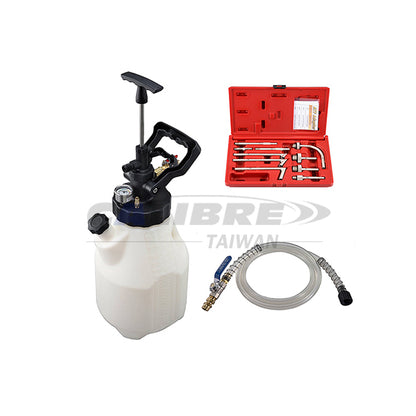

CAK0033 12.5 Liter Tank Fluid Refilling Set

CAK0033 12.5 Liter Tank Fluid Refilling Set

Introduction:
  • A special set for refilling fluid such as ATF, gear oil and differential oil
  • Required for several types of vehicles without transmission dipstick tube (e.g. Volkswagen, Audi, Ford, Toyota, Mercedes-Benz and Volvo)

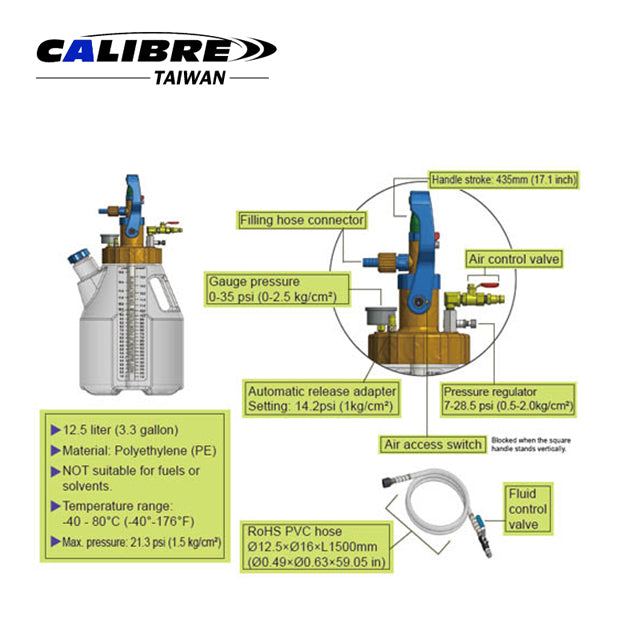

  • 12.5 liter tank with both manual and pneumatic functions (patent pending)
  • 1500mm-long RoHS PVC filling hose with a quick coupler that can be connected with filling adapter
Safety Precaution:
  • Read the instructions carefully before working on the refilling process
  • Wear eye and skin protection, and always keep working areas clean
  • Keep children and any flammable objects away from working areas
  • Clean the tank and your skin (esp. hands) after using the tank with fluids or solvents
  • Release pressure in the tank by pulling the square handle after work
  • Adjust pressure regulator and observe pressure reading carefully when refilling
  • Adjust the automatic release adapter if necessary and carefully follow the correct steps.
  • Screw the hex-inside nut clockwise to increase pressure
    → increase pressure setting, e.g. 14.2 psi to 18.5 psi
  • Screw the hex-inside nut counter-clockwise to decrease pressure
    → decrease pressure setting, e.g. 14.2 psi to 12.8 psi
Installation:
  • Remove the automatic transmission fluid (ATF) drain plug at the draining hole with a wrench and prepare a container to hold the fluid .
  • When finishing draining the fluid, screw the plug back on the hole.
  • Choose a suitable refilling adapter and connect it to the end of the PVC hose and connect the other end to the tank
  • Remove the transmission filling plug at the filling hole, and Hook or screw the adapter on the filling hole
  • Prepare the 12.5-liter (3.3 gallon) tank filled with a suitable volume of ATF.
  • Note: Please refer to auto manufacturer’s service manual for the suitable volume of ATF required for your car.
Packaging:
  • 1Set/Color Box
  • 2Set/10/11kgs/3.5'
