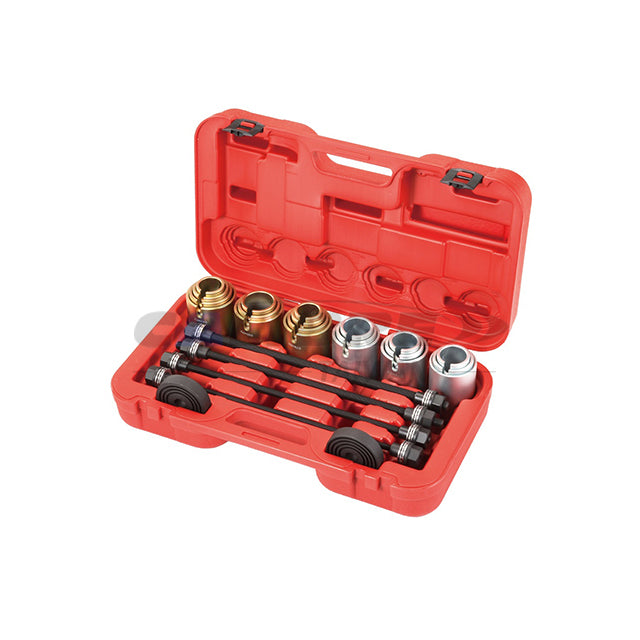

CAK0008 TAIWAN CALIBRE 26pc Universal Remove &Install Sleeve Kit

CAK0008 TAIWAN CALIBRE 26pc Universal Remove &Install Sleeve Kit

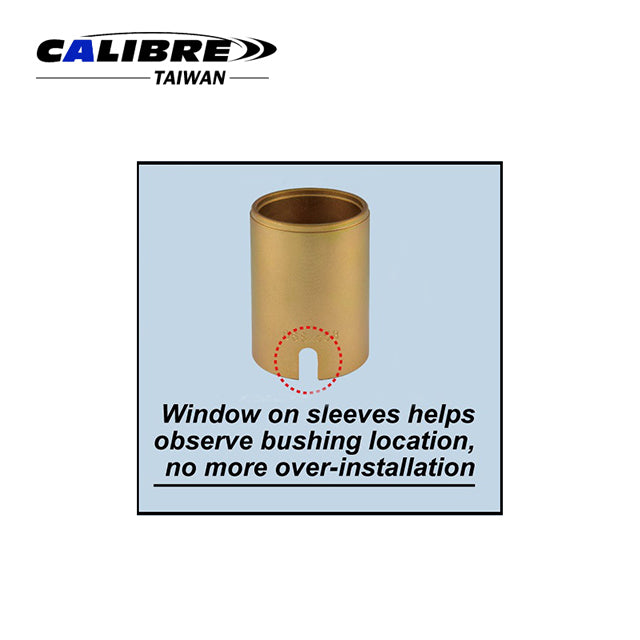

Bushing removal kit features universal step discs for various vehicles, making removal and installation easy. Bushing removal works with bearing bushings, silent bushings, hydraulic bearings, and rubber bearings. Two-sided step discs save time and space, while observation windows prevent overwork. Spindle nuts with bearings reduce friction, and square-threaded spindles ensure strength and durability.


Contents:

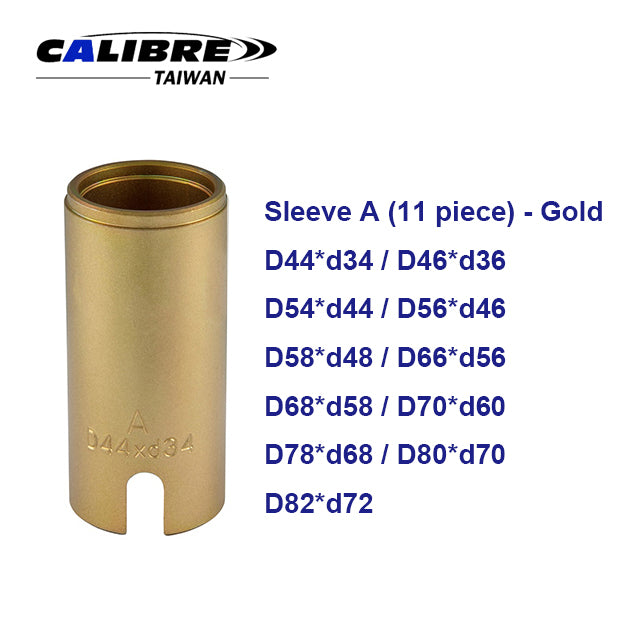

  • A Sleeves (11pc): Yellow Zinc Plating、MATERIAL: Steel
    D44 × d34、D46 × d36、D54 × d44、D56 × d46、D58 × d48、D66 × d56、D68 × d58、D70 × d60、D78 × d68、D80 × d70、D82 × d72

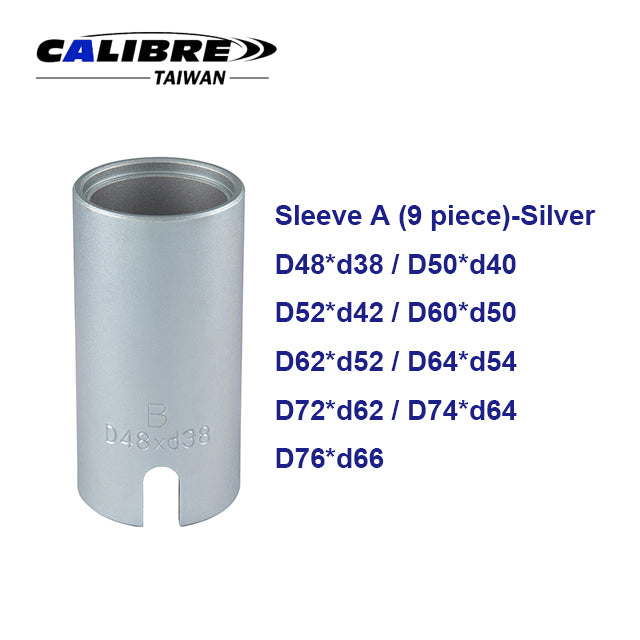

  • B Sleeves (9pc): Zinc Plating、MATERIAL:Steel
    D48 × d38、D50 × d40、D52 × d42、D60 × d50、D62 × d52、D64 × d54、D72 × d62、D74 × d64、D76 × d66

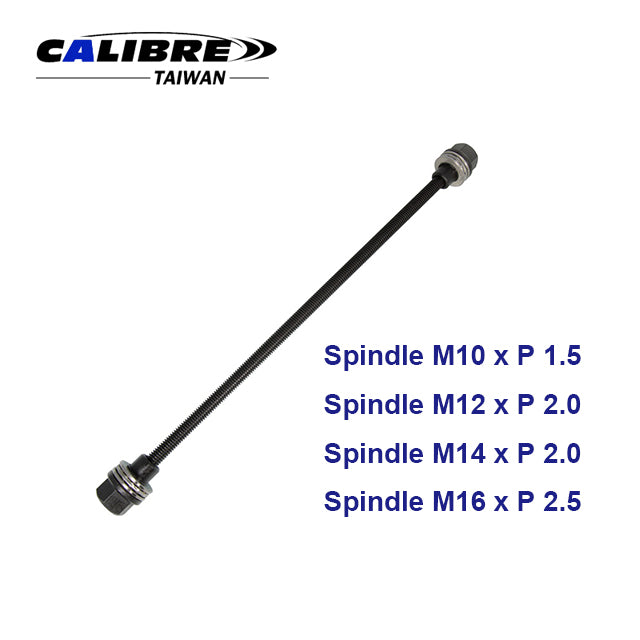

  • Spindles (4pc): Manganese Phosphate、MATERIAL:SCM440
    M10 × P1.5、M12 × P2.0、M14 × P2.0、M16 × P2.5

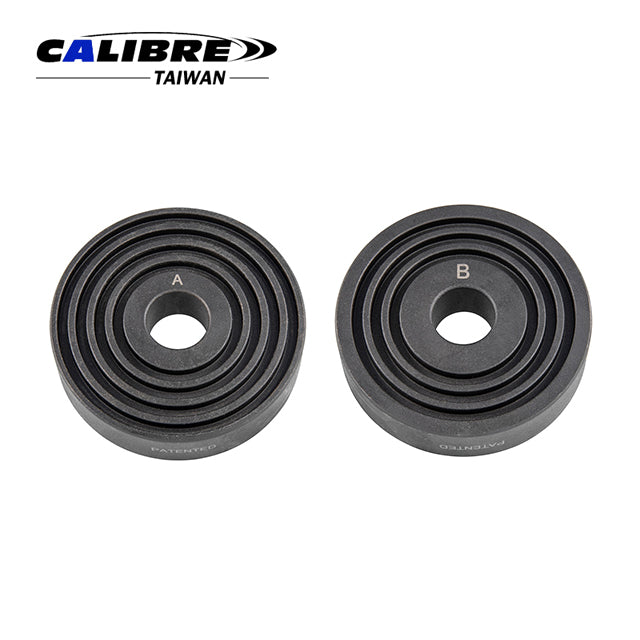

  • Step discs (2pc): Manganese Phosphate、MATERIAL:S45C
    Inner Ring Ø20
    Side A:Ø36、Ø42、Ø48、Ø54、Ø60、Ø66、Ø72、Ø78
    Side B:Ø42、Ø48、Ø54、Ø60、Ø66、Ø72

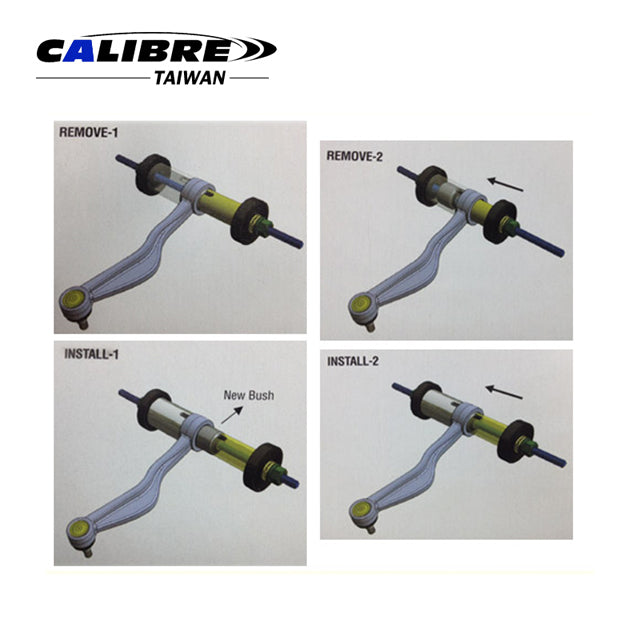

Instruction:
  • Easy work to remove and install :
  • 1) Bearing bush
  • 2) Silent bearing
  • 3) Hydraulic bearing
  • 4) Rubber bearing
Packaging:
  • 1Set/Blow Mould Case
  • 1Set/18/19kgs/1.1'
