CAJ0237 CALIBRE Flywheel Locking Tool - for Hyundai, Kia

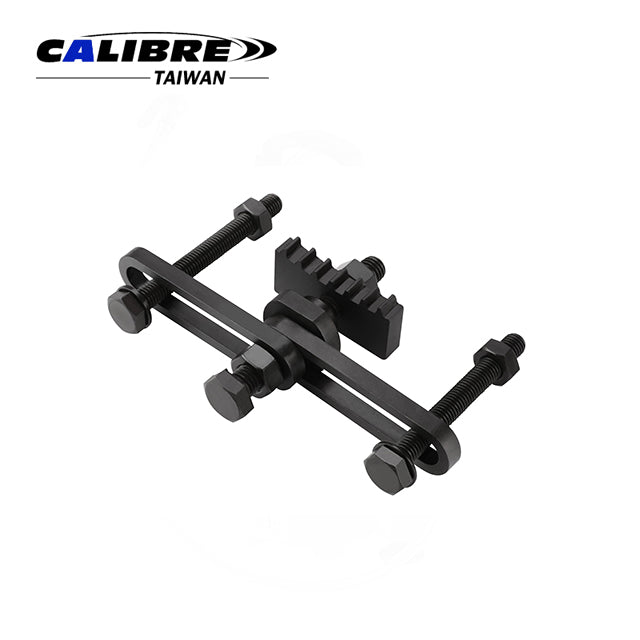

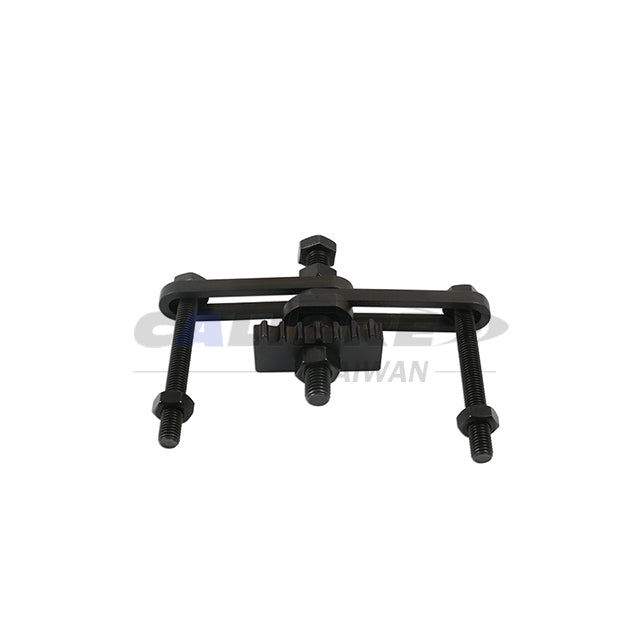

CAJ0237 CALIBRE Flywheel Locking Tool - for Hyundai, Kia

Flywheel locking tool locks the flywheel through the starter motor aperture on Hyundai/Kia 1.0–2.7L petrol and diesel engines. It locks the crankshaft, allowing safe removal and torque adjustment of the pulley, clutch bolts, and flywheel bolts without movement.

Material:

  • S45C
Feature:

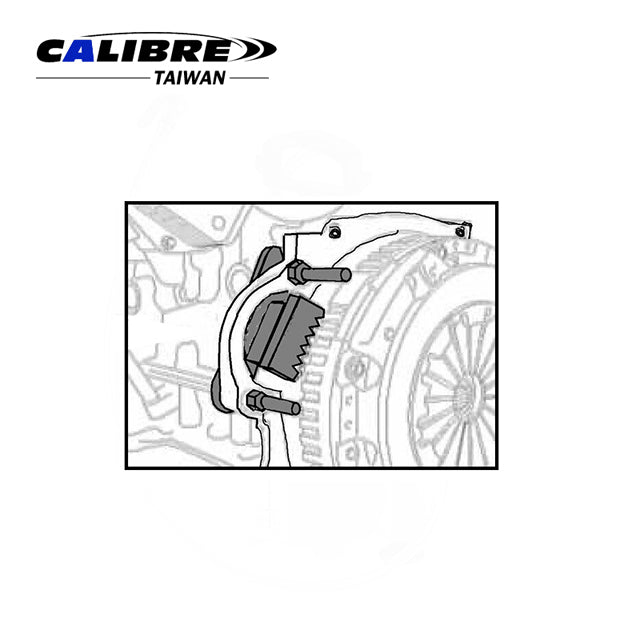

  • Designed to lock the flywheel through the starter motor aperture on Hyundai/Kia 1.0–2.7L petrol and diesel engines.
  • This tool ensures the crankshaft is locked to allow the crankshaft pulley, clutch bolts and flywheel bolts to be removed and torqued without moving the crankshaft.
Application:
  • 1.0, 1.2, 1.25, 1.4, 1.6, 2.0, 2.4 and 2.7L petrol and diesel chain driven engines across the Hyundai & Kia vehicle ranges, fitting some engines from 2001.
  • Engine codes covered include: G3LA, GELC (1.0L); G4LA (1.2L); G4LC and G4FA (1.4L); G4FC, G4FD and G4FJ (1.6L); G4KD, G4KF, G4NC, G4NA, G4ND and G4NE (2.0L); G4KE and G4KJ (2.4L) and G6BA (2.7L).
  • Equivalent to OEM 09231-2B100 and 09231-3N100.
Packaging:
  • 1Set/White Box
  • 40Set/18/19kgs/1.5'
