CAJ0004 CALIBRE Shock Absorber Installation Tool

CAJ0004 CALIBRE Shock Absorber Installation Tool

Material:
  • S45C Steel
Feature:
  • Pat.P
  • This new and innovative tool is a genuine problem solver for the dismantling and assembly of shock absorbers with tension stop springs.
Function of the tension stop springs:
  • The tension stop springs ensure that the shock absorber cannot be damaged, when stretching right up to the end stop.
  • The spring is located directly within the shock absorber and is not active when in neutral gear and in the pressure stage.
  • It only comes into effect at the end of the damper passage during the rebound stroke.
Removal procedure:
  • Strut completely removed
  • Dust boot or bump stop lifted
  • Piston rod degreased
  • Add clamping piece and secure in place
Advantage:
  • Piston rod only remains in this position during the clamping process and is not retracted.

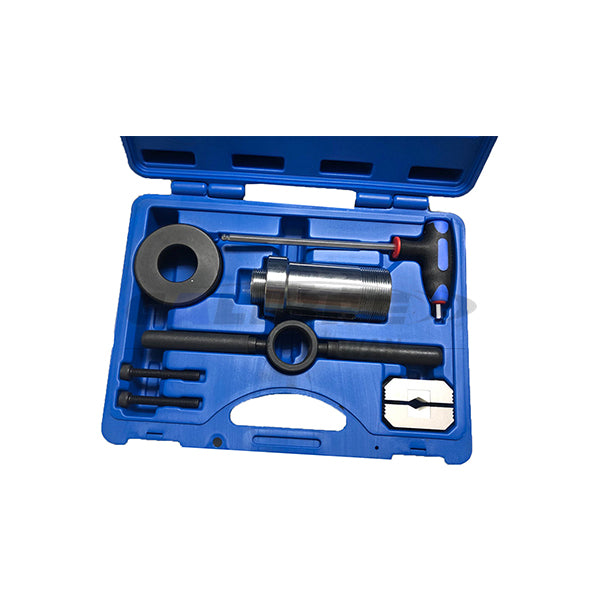

Contents:
  • 1 x Telescopic basic unit with handle

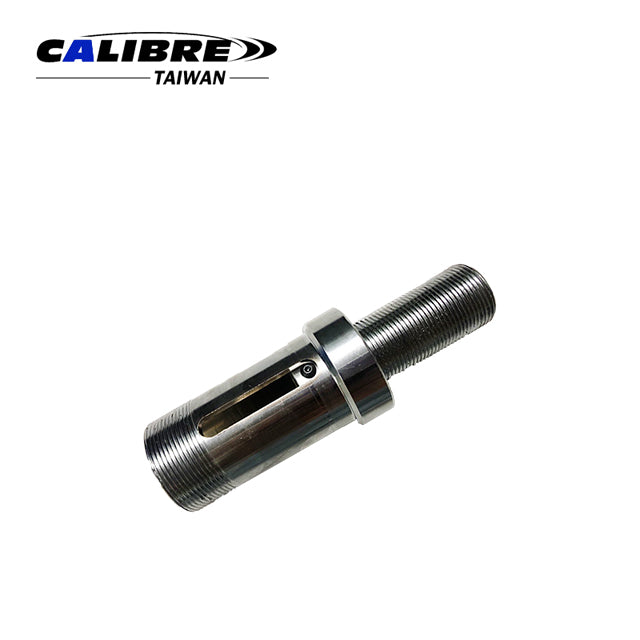

  • 1 x Intermediate bearing with telescopic pipe receiving thread and handle

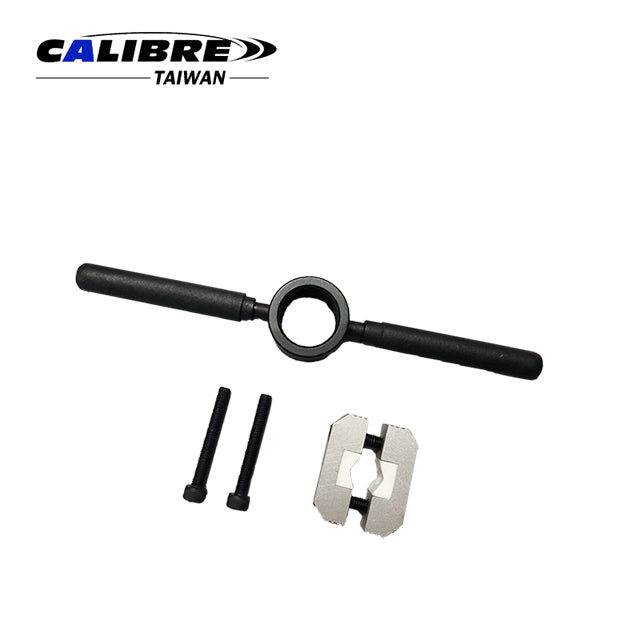

  • 1 x Uni-clamping piece with plastic jaw protector
  • 1 x Clamping screw set, 2 pcs short
  • 1 x Clamping screw set, 2 pcs long

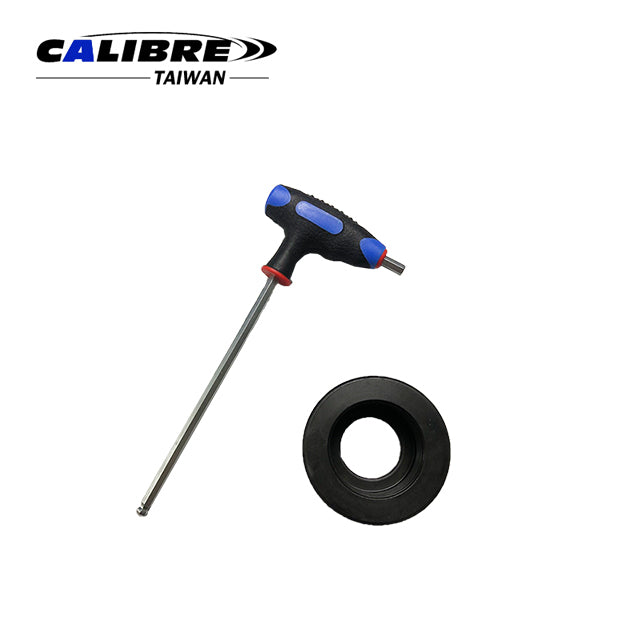

  • 1 x T-grip Allen key with ball
Application:
  • BMW / MB / Toyota / Nissan / Fiat / Peugeot / Ford etc
Packaging:
  • 1Set/Blow Mould Case
  • 5Set/14/15kgs/1.15'
