CAD0009 CALIBRE 552PC Open Barrel Terminal Crimper Kit

CAD0009 CALIBRE 552PC Open Barrel Terminal Crimper Kit

Color:
  • Blue Handle

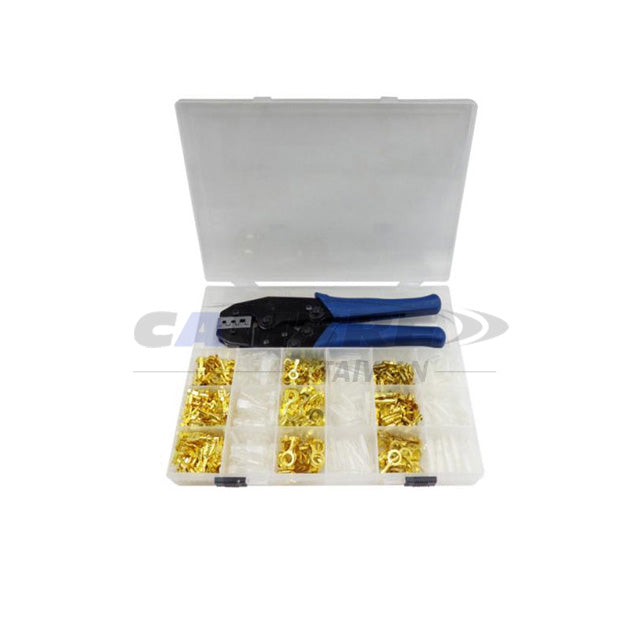

Contents:

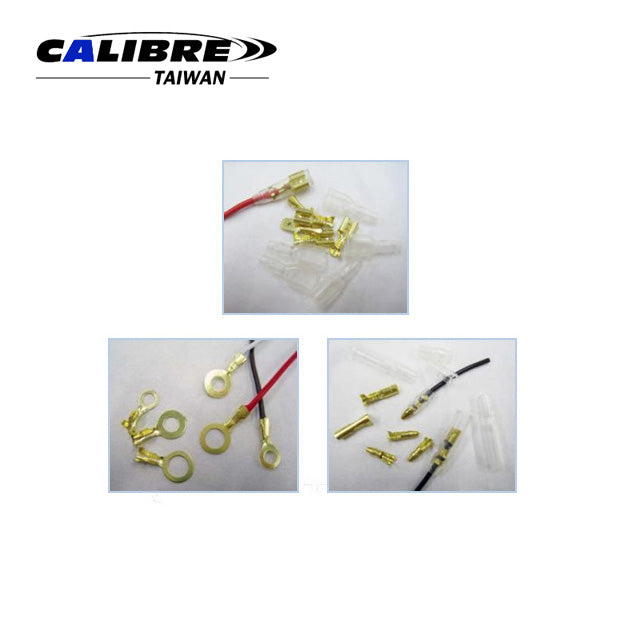

  • Ring-Open Barrel Disconnectors#10[AWG22-16][0.5~1.5mm2]*50PC
  • Ring-Open Barrel Disconnectors1/4"[AWG22-16][0.5~1.5mm2]*50PC
  • Ring-Open Barrel Disconnectors5/16"[AWG22-16][0.5~1.5mm2]*50PC
  • Male-Open Barrel Disconnectors[AWG16-14][2mm2]*50PC
  • Female-Open Barrel Disconnectors[AWG16-14][2mm2]*100PC
  • Male-Open Barrel Bullet Disconnectors[AWG22-16][0.5~1.5mm2]*50PC
  • Female-Open Barrel Bullet Disconnectors[AWG22-16][0.5~1.5mm2]*50PC
  • PVC Cover for Female Type-Open Barrel Disconnectors*50PC
  • PVC Cover for Female Type-Open Barrel Bullet Disconnectors*50PC
  • PVC Cover for Male Type-Open Barrel Bullet Disconnectors*50PC
  • Quick Change Ratchet Crimper*1PC
  • Die for Open Barrel Terminal*1SET

Suitable for Open Barrel Terminal:
  • AWG 20-18/16-14/12-10
  • DIN 0.5-1.0/1.5-2.5/4-6m㎡
Open Barrel Bullet Disconnectors:
  • Terminal Material: Bass
  • Chemical Treatment: Brass Finish

Insulation Material:
  • PVC
Die:
  • Material: AISI-4140
  • Procedure: Precision and Wax-Lost Casting
  • Treatment: Finished with Heat Treatment
  • Surface Treatment: Zinc Phosphate
Quick Change Ratchet Crimper Material:
  • Body: Carbon Steel
  • Handle: PP
Packaging:
  • 1Set/PP Box
  • 20Set/19.9/20.9kgs/1.3'
