Projen Taiwan - Auto Tools, Hand Tools manufacturer

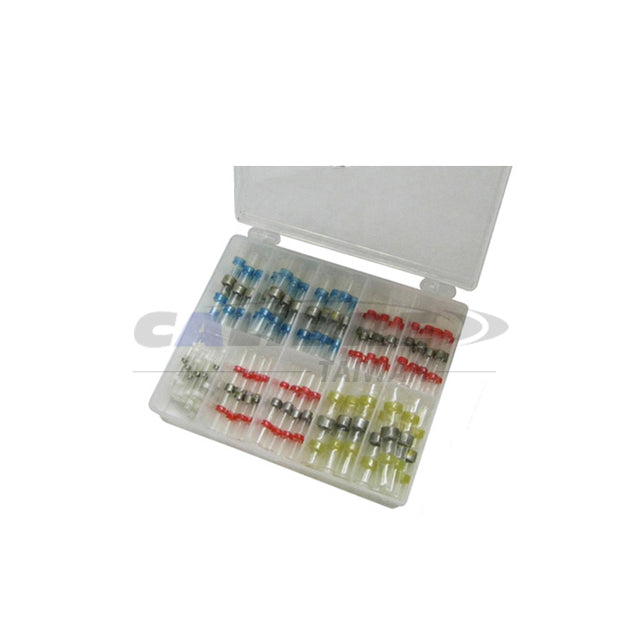

CAD0006 CALIBRE Solder Sleeve Wire Splices Heat Shrink Tube Set

CAD0006 CALIBRE Solder Sleeve Wire Splices Heat Shrink Tube Set

Size:
  • CAD0006-90: 90pc
  • CAD0006-30: 30pc

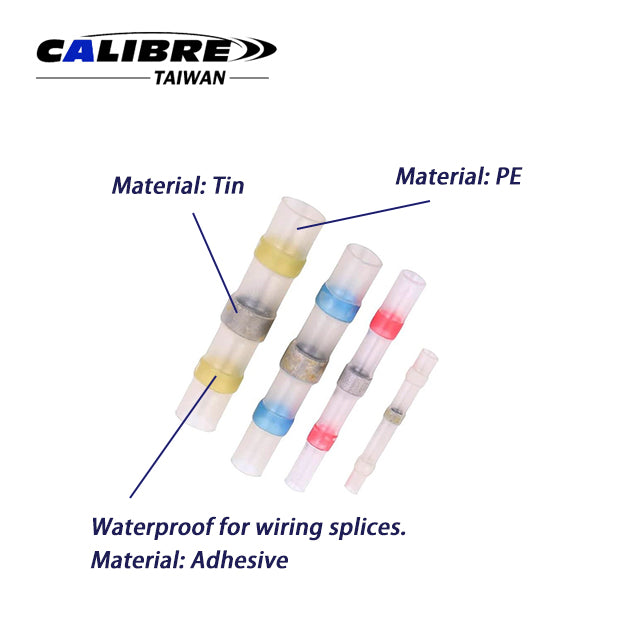

Material:
  • PE + Tin + Adhesive
Operating temperature range:
  • Operating temperature: -55˚C~105˚C
  • Minimum shrink temperature: 60˚C
  • Minimum fully recovery temperature: 125˚C
  • Starting temperature of solder melt: 110˚C
Contents:

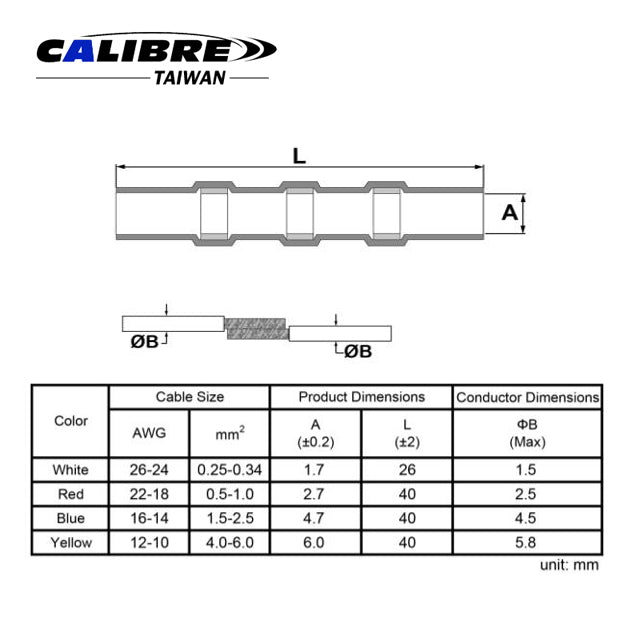

  • CAD0006-90: 1.7x26mm-White x 30pc + 2.7x40mm-Red x 30pc + 4.7x40mm-Blue x 20pc + 6.0x40mm-Yellow x 10pc
  • CAD0006-30: 1.7x26mm-White x 8pc + 2.7x40mm-Red x 12pc + 4.7x40mm-Blue x 6pc + 6.0x40mm-Yellow x 4pc
Feature:
  • Shrinkage ratio: 2:1
  • Waterproof for wiring splices
  • Easy control soldering process
  • Transparent sleeve provides precise inspection
Packaging:
  • 1Set/PP Box
  • CAD0006-90: 24/144Set/12/13kgs/2'
    CAD0006-30: 24/144Set/8.7/9.7kgs/2'
