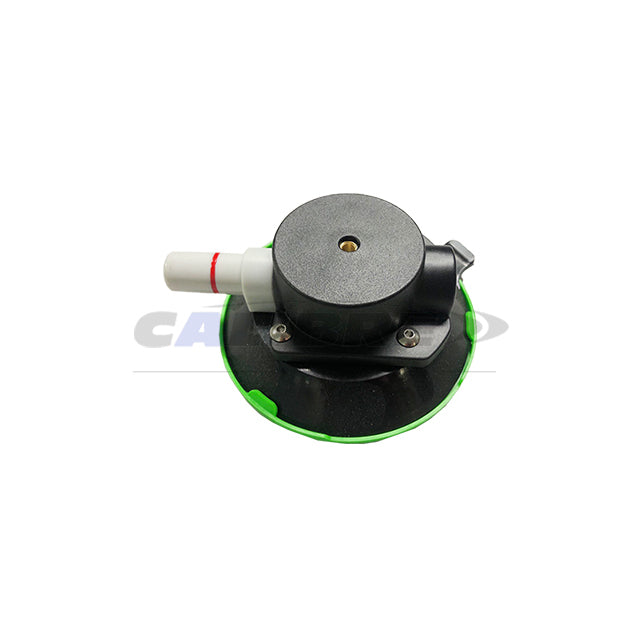

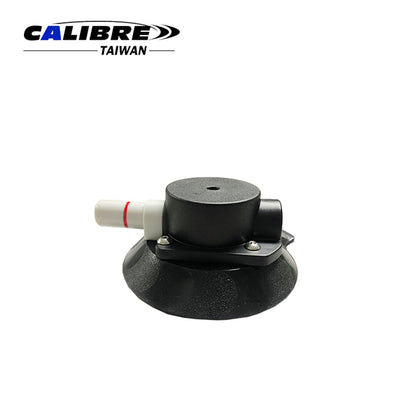

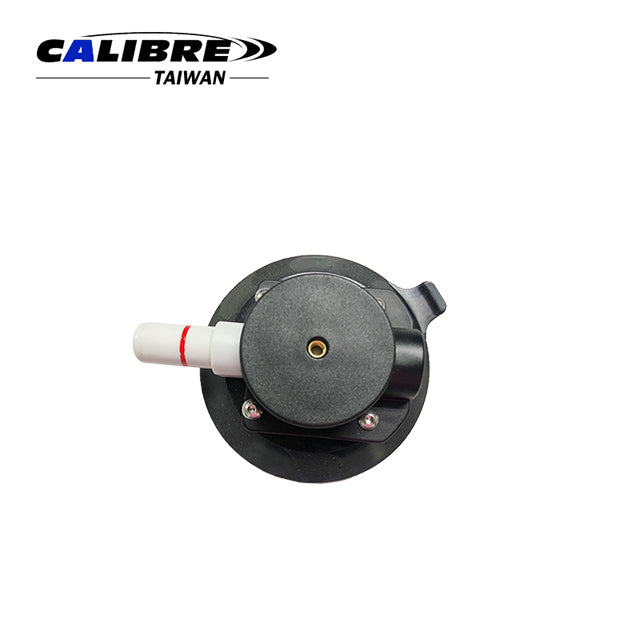

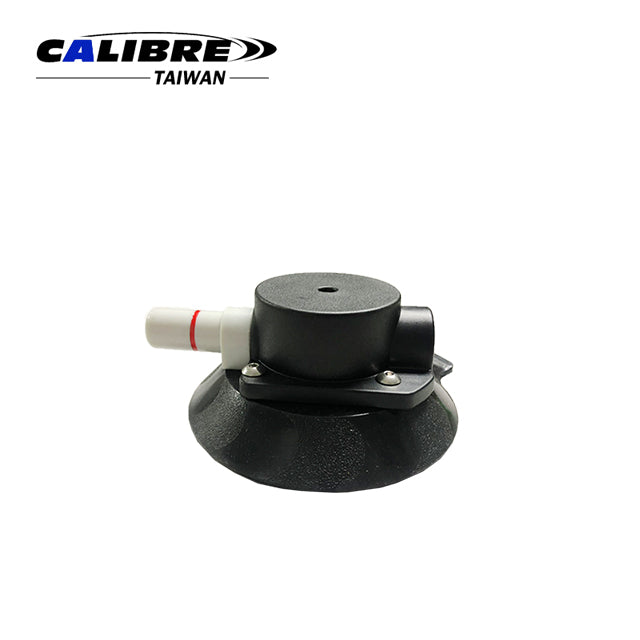

CAC0020 5” Vacuum Mounting Cup

CAC0020 5” Vacuum Mounting Cup

Feature:
  • Durable polycarbonate accessory mount with threaded stud for attaching equipment.
  • Studs available in various lengths and threads, including metric size.
  • Provide a reliable, temporary vacuum mount, without drilling holes.

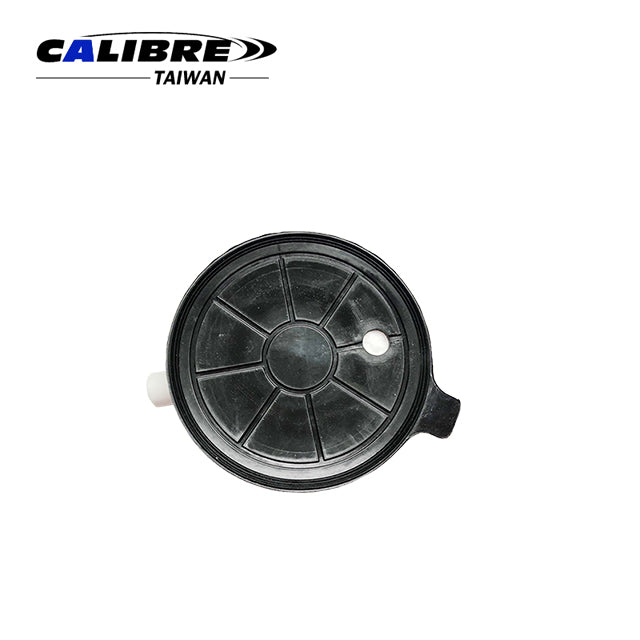

  • Rubber vacuum pad will not mark or damage most surfaces.
  • Attaches to flat or curved, smooth, nonporous surfaces.
  • Red-line indicator warns user of any vacuum loss.
  • Check valve allows repumping without loss of remaining vacuum.
  • Lift tabs on vacuum pad edges permit instant release.

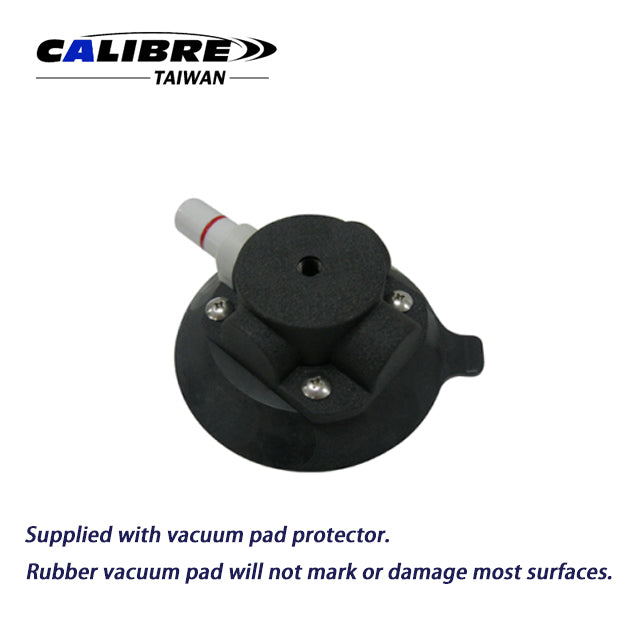

  • Supplied with vacuum pad protector.
Size:
  • Diameter: 122mm,5”
  • Loading capacity: 25kgs
  • Weight: 250G
  • Screw thread: M6 screw, 8mm depth
Material:
  • Main Body: Plastic
Packaging:
  • 1pc/Corrugated Box
  • 25pc/11kgs/1.7'
