Projen Taiwan - Auto Tools, Hand Tools manufacturer

CAA0306 Press & Pull Sleeve Kit

CAA0306 Press & Pull Sleeve Kit

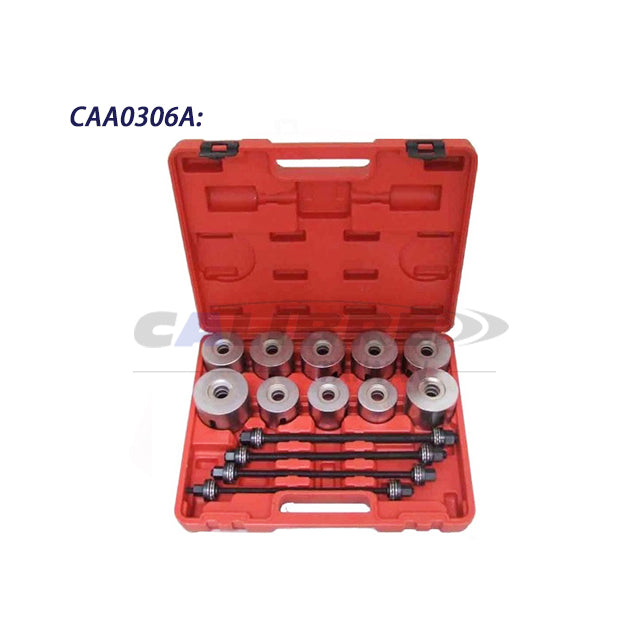

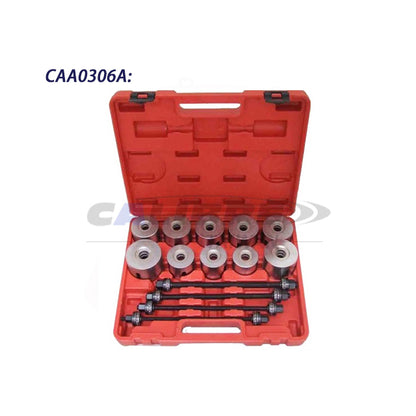

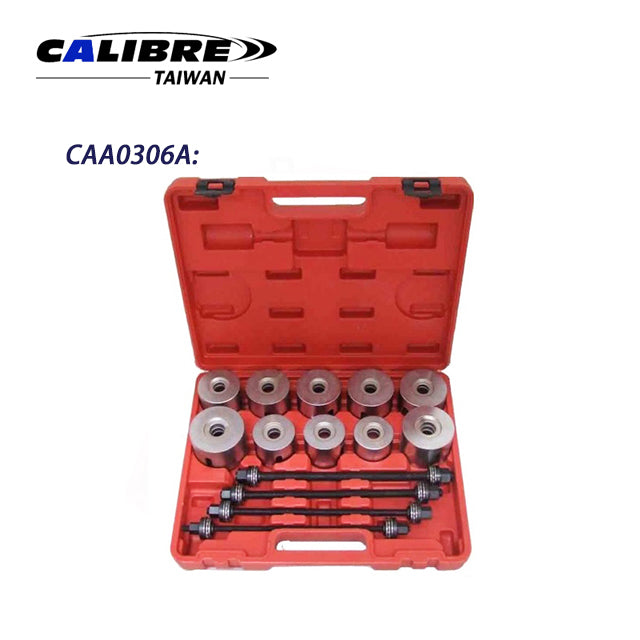

CAA0306A Size:
  • Inside Ø from 34-72mm in 2mm steps.
    34,36,38,40,42,44,46,48,50,52,54,56,58,60,62,64,66,68,70,72 mm
  • Outside Ø from 44-82mm in 2mm steps.
    44,46,48,50,52,54,56,58,60,62,64,66,68,70,72,74,76,80,80,82 mm

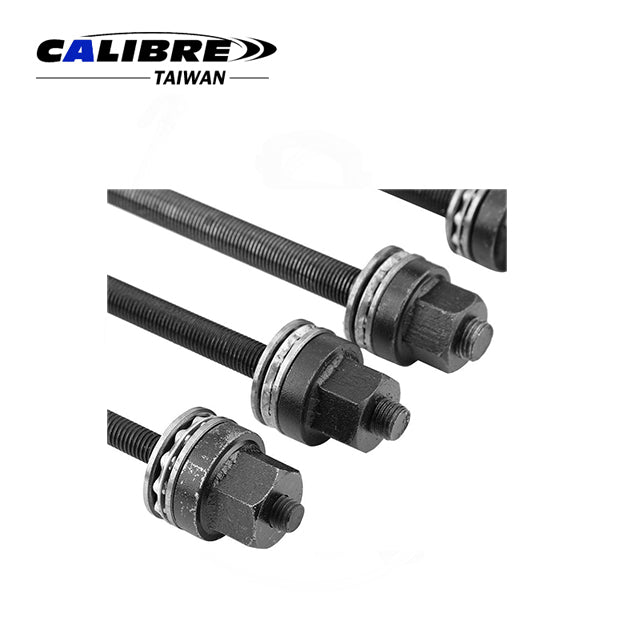

  • 4 x Pulling Spindles with nuts and thrust bearings - M10, M12, M14, M16

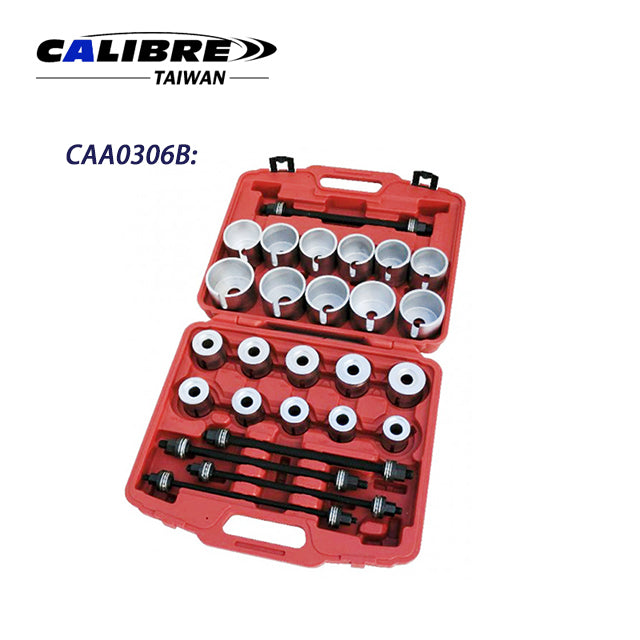

CAA0306B Size:
  • For the removal and installation of bushes, bearings and seals etc.
  • Inside Ø from 34-80mm in 2mm steps.
    34,36,38,40,42,44,46,48,50,52,54,56,58,60,62,64,66,68,70,72,75,80 mm
  • Outside Ø from 44-90mm in 2mm steps.
    44,46,48,50,52,54,56,58,60,62,64,66,68,70,72,74,76,80,80,82,85,90 mm

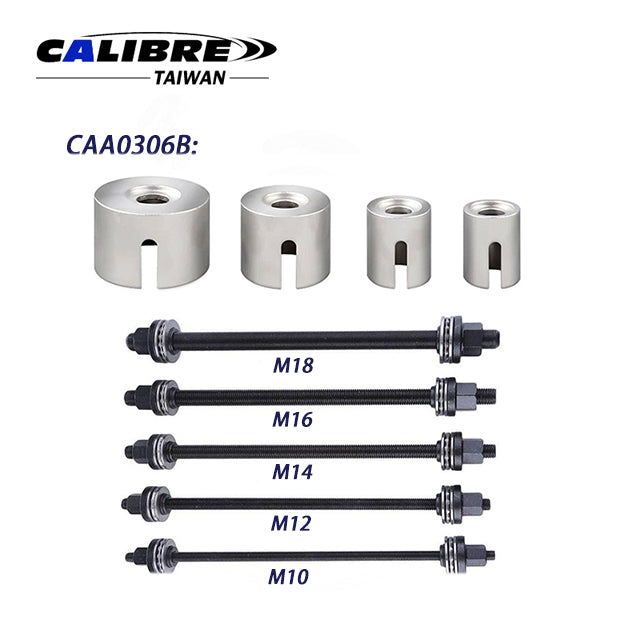

  • 5 x Pulling Spindles with nuts and thrust bearings - M10, M12, M14, M16, M18
  • Fully universal applications on both cars and LCV.
Material:
  • Socket: S45C
  • Pulling Spindles: SCM440
Feature:
  • Universal tool set for extracting and drawing in:
  • Silent bearings, hydraulic bearings, bearing bushes, ball bearings, shaft seals, rubber bearings, etc.
  • Fully universal application. Ideal for different vehicles.
    Cars + HGVs
  • Depending on requirements, the particular sleeves can also be individually reworked (e.g. recess, etc.)
  • Application also with workshop press +press frame
Packaging:
  • 1Set/Blow Mould Case
  • CAA0306A: 1Set/15.1/15.6kgs/0.9'
  • CAA0306B: 1Set/17.2/18.2kgs/0.9'
